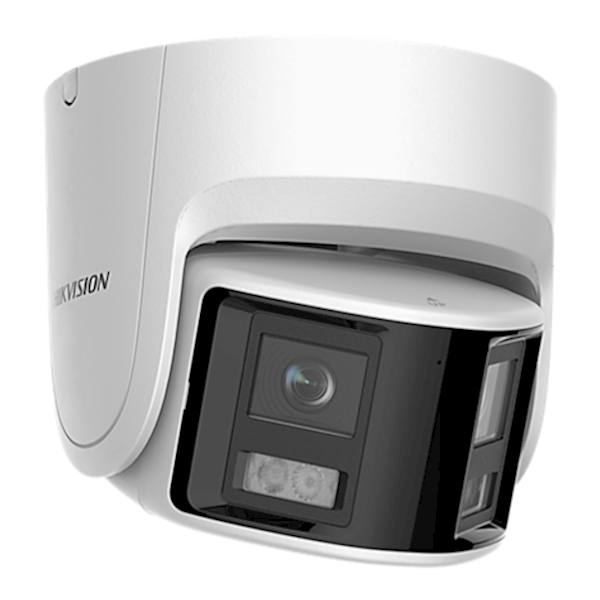

Hikvision ColorVu Dome 4MP Panoramisch 2.8mm
Camera
- Image Sensor2 × 1/2.5" Progressive Scan CMOS
- Max. Resolution3040 × 1368
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Angle AdjustmentPan: -30° to 30°,tilt: -75° to 75°Lens
Lens
- Lens Type Fixed focal lens, Dual lens: 2.8 mm
- Focal Length & FOV 2.8 mm
- Horizontal FOV: 180°,
- Vertical FOV: 81°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- Depth Of Field 2 m to ∞
DORI
- DORI 2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
Illuminator
- Supplement Light Type White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
Video
- Main Stream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
- Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile, High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region(s) for main stream
Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live ViewUp to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
Security
- Password protection, complicated password, HTTPS encryption, 802.1X authentication
- (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
- NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch Yes
- Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-In Microphone Yes
- Built-In Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Audio
- 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
- 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
Event
- Basic Event
- Motion detection (support alarm triggering by specified target types (human and vehicle))
- alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event
- Line crossing detection, intrusion detection, region entrance detection,
- Region exiting detection (support alarm triggered by specified target types (human and vehicle)),
- Scene change detection
Linkage
- Upload to FTP/NAS/memory card,notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
General
- Power 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Materiaal Base: metal, cover: metal
- Dimension Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"
- Package Dimension230 mm × 230 mm × 230 mm (9" × 9" × 9")
- Weight Approx. 920 g (2.0 lb.)
- With Package Weight Approx. 1670 g (3.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-banding, heartbeat, mirror, flash log, pixel counter
- Flashing LightYes
Approval
- EMC
- FCC: 47 CFR Part 15, Subpart B,
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7
Safety
- UL: UL 62368-1,
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
