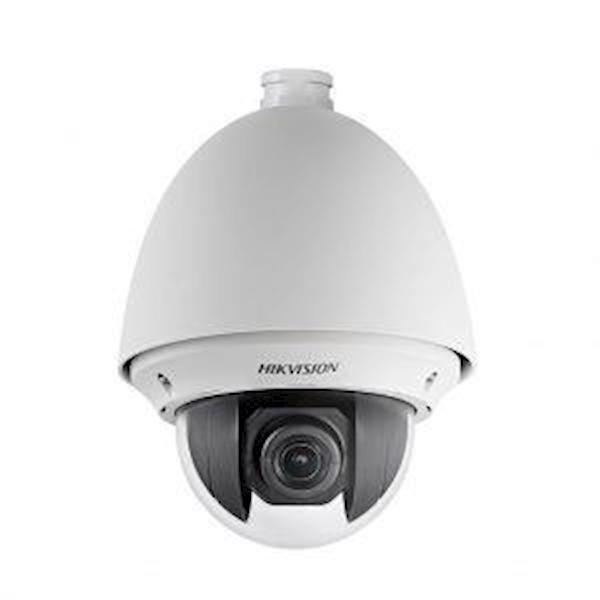

DS-2DF5225X-AEL, Hikvision Rapid focus PTZ 2MP 25x zoom
Belangrijke kenmerken:

  • 1 / 2.8 '' Progressive Scan CMOS, tot 1920x1080
  • 25x optische zoom
  • Slimme tracking
  • 3D DNR, BLC
  • ROI-codering
  • IP66-classificatie
  • 3 streams
  • Ondersteuning H.265 + / H.265
Rapid focus PTZ 2MP 25x zoom
Image Sensor:   1/2.8" Progressive Scan CMOS
Effective Pixels:   1920(H)x1080(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.05 Lux @(F1.6, AGC ON)
B/W: 0.01 Lux @(F1.6, AGC ON)
White Balance:   Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:   Auto/Manual
HLC:   Support
Smart defog:   Support
WDR:   120dB
Shutter Time:   50Hz: 1/1-1/30,000s
60Hz: 1/1-1/30,000s
Day& Night:   ICR
Digital Zoom:   16X
Privacy Masking:   24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus:   Auto / Semi-automatic / Manual
Focal Length:   4.5 mm to 112.5 mm, 25× Optical
Zoom Speed:   Approx.3.7s(Optical Wide-Tele)
Angle of View:   Horizontal field of view: 61.4° to 2.7° (wide-tele)
Vertical field of view: 40.7° to 1.7° (wide-tele)
Diagonal field of view: 70.0° to 3.2° (wide-tele)
Minimum Working Distance:   10-1500mm(Wide-Tele)
Aperture Range:   F1.6-F4.0
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range:   -5°~90° (Auto Flip )
Tilt Speed:   Pan Manual Speed: 0.1° -240°/s,
Pan Preset Speed: 400°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   300
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery:   Support
Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:   ON/OFF
Freeze Frame:   Support
Smart-tracking:   Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Alarm Input:   7 Inputs
Alarm Output:   2
Alarm Actions:   Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
Monitor Output:   1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:   Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output:   Line level, impendance: 600Ω
Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:   1920×1080
Main Stream:   50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:   50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Third Stream:   50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding:   Support 24 areas with adjustable levels
Audio Compression:   G.711ulaw/G.711alaw/G.726/MP2L2
No. of Simultaneous Users:   Up to 20 users
Three-Stream:   Support
Mini SD Card:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:   User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control:   Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:   Time: Week: Date, 6 formats on the Client
Client:   Support iVMS-4200
Web Browser:   IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:   English
Power Supply:   24 VAC & Hi-PoE
Power Consumption:   Outdoor dome: Max. 40W
Indoor/In-ceiling dome: Max. 25W
Working Temperature/Humidity:   -40°C to 65°C (-40°F to 149°F) (Outdoor)
-10°C to 50°C (14°F to 122°F) (Indoor)
Protection Level:   IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:   Various mounting modes optional
Dimensions:   Φ 220 mm × 302 mm (Φ 8.66" × 11.89") (Outdoor)
Φ 245.1 mm × 239 mm (Φ 9.65" × 9.41") (Indoor)
Weight (approx.):   Approx. 4 kg (8.82 lb) (Outdoor)
Approx. 3.4 kg (7.50 lb) (Indoor)

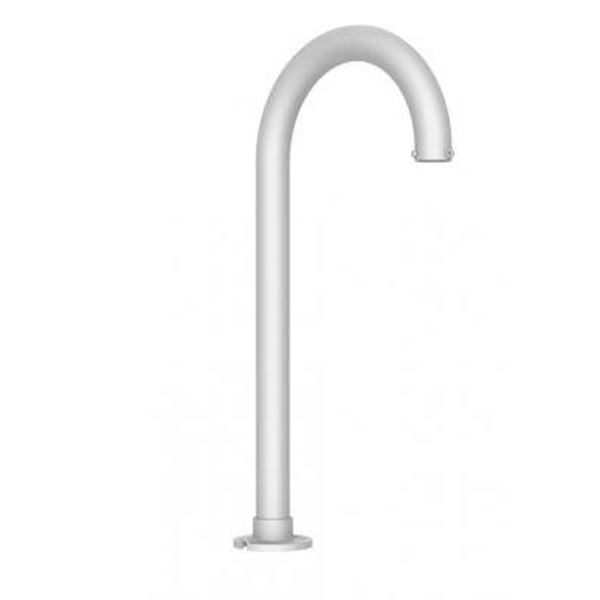

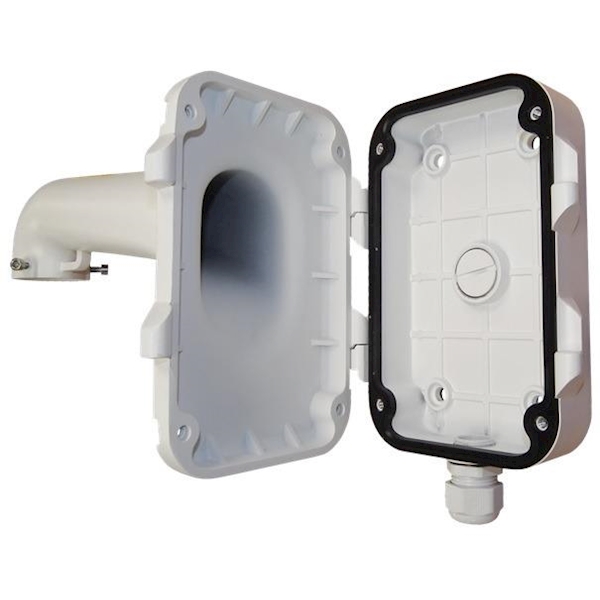

Mount Option:   Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
