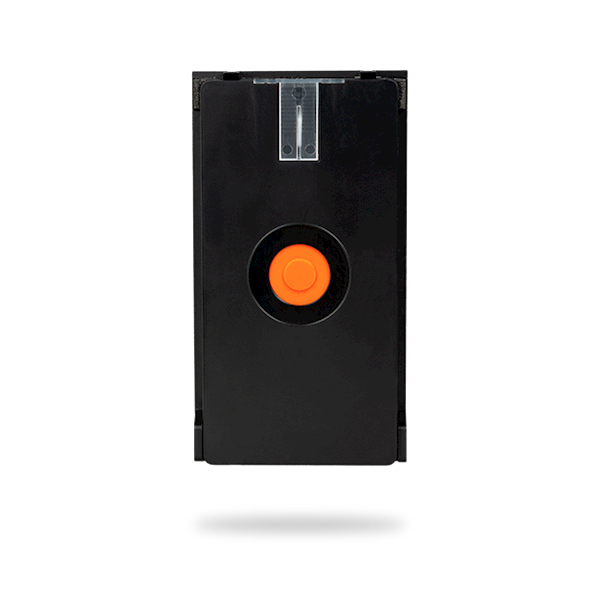

Draadloze multifunctionele paniekknop
| Power |
2 x Alkaline batteries, type LR03 (AAA) 1.5 V/1.2 Ah
Important: Batteries are not included in the packaging
(PS type C according to EN 50131-6) |
| Typical battery lifetime |
approx. 3 years (if activated 3x per day) |
| Quiescent power consumption |
20 μA |
| Maximum power consumption |
40 mA |
| Low Battery Threshold |
< 2.3 V |
| Communication frequency |
868.1 MHz, Jablotron protocol |
| Maximum radio-frequency output (ERP) |
5 mW |
| Communication range |
approx. 300 m (line-of-sight) |
| Classification |
Security grade 2/environmental class II (EN 50131-1) |
| Environment |
Indoor general |
| Ingress Protection Code |
IP 22 |
| Operational temperature range |
-10 °C to +40 °C |
| Average operating humidity |
75 % RH, w/o condensation |
| Dimensions (with mounting platform) |
66 x 22 x 122 mm |
| Weight (w/o batteries) |
88 g |
| Operating conditions according to |
ERC/REC 70-03 |
| Certification body |
Trezor Test s.r.o. (no. 3025) |
| Additionally in compliance with |
ETSI EN 300 220-1,-2, EN 55032, EN 50130 4, EN 62368-1, EN 62311, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6, CLC/TS 50131-11, EN 50134-2 |
| Recommended screw |
4 x ø3.5 x 40 mm (countersunk head) |
