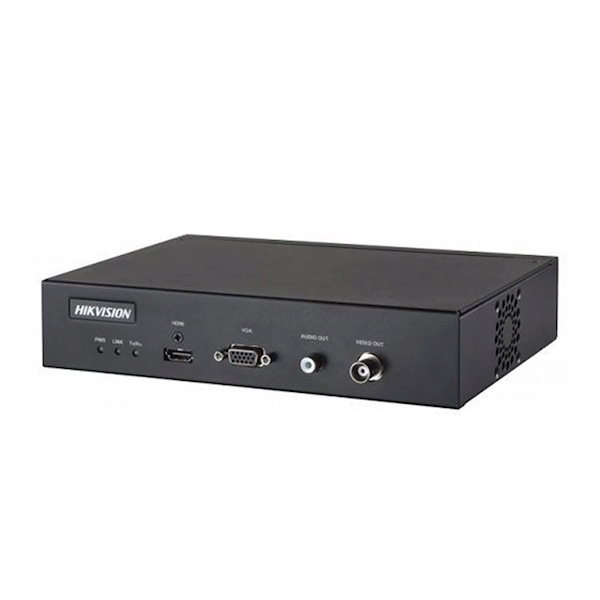

Hikvision Decoder 1-ch. HDMI/VGA/BNC
HDMI Output
1-ch
1080p: 1920 × 1080@50/60Hz
UXGA: 1600 × 1200@60Hz (only for even interface)
SXGA: 1280 × 1024@60Hz
720p: 1280 × 720@50Hz/60Hz
XGA: 1024 × 768@60Hz
4K: 3840 × 2160@30Hz (only for even interface)
VGA Output
1-ch.
1080p: 1920 × 1080@50/60Hz
SXGA: 1280 × 1024@60Hz
720p: 1280 × 720@50Hz/60Hz
XGA: 1024 × 768@60Hz
Video Input
1-ch, VGA connector; 1-ch, DVI-I connector
XGA@60Hz, 720p@60Hz, 720p@50Hz, UXGA@60Hz,
SXGA@60Hz, 1080p@50Hz, 1080p@60Hz, 1080
BNC Output
1-ch.
Decoding resolution
Up to 12MP
Decoding channel
16-ch.
Decoding Capability
12MP@20fps: 2-ch
8MP@30fps: 4-ch
5MP@30fps: 6-ch
3MP@30fps: 10-ch
1080p@30fps: 16-ch
Split Screen
1/4/6/8/9/12/16
Network Interface
1x 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface
1x RS-232 (RJ 45), 1x RS-485
Two-Way Audio In
1-ch, 3.5 mm connector (2.0 Vp-p, 1 k Ω)
Two-Way Audio Out
1-ch, 3.5 mm connector (2.0 Vp-p, 1 k Ω
Audio Output
1-ch.
Alarm In/out
8-ch.
Power Supply
12 VDC
Power Consumption
<15W.
Dimensions
220mm × 148mm × 45mm
Weight
≤ 1.2kg.
