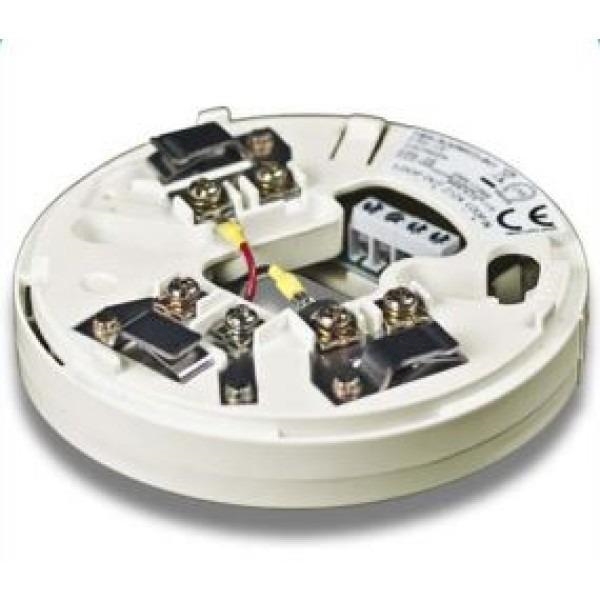

Marine Approved Short Circuit Isolator Base (Ivory)
Specificaties
Protocol
ESP
Werkspanning
17 - 41 V dc (nominaal 24 V dc)
Standby-stroom
60 µA
Stroomverbruik door isolator bij een foutconditie
< 4 mA
Maximale stroomconsumptie van de externe LED
10 mA (beperkt door aangesloten sensor)
Maximale continue stroom
1 A
Maximale hoeveelheid per lus
1271
Omgevingstemperatuurbereik
-10 °C tot +50 °C
Relatieve luchtvochtigheid
10% tot 95% RH (bij 40 °C)
Kleur en behuizingmateriaal
Ivoor of Wit ABS
Montagecentra
48 mm tot 74 mm
Maximale draaddikte
2,5 mm² / terminal
Afmetingen (mm)
100 (diameter) x 13,7 (hoogte)
Gewicht (g)
79gr.
