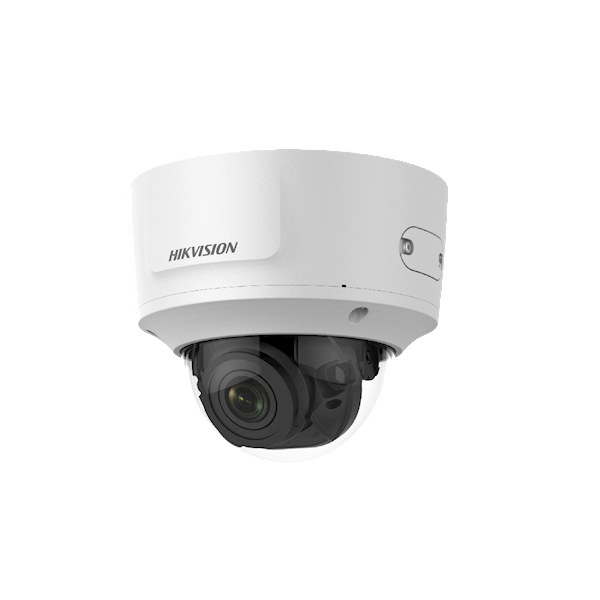

3-line Varifocal dome, 8MP, 2.7-13.5mm, Acusense, Audio
Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120 dB
- Day & Night IR cut filter
- Power-off Memory Yes
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Lens Type Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
- Iris Type Auto-iris
- Lens Mount 2.7 to 13.5 mm: Ø14
- Focal Length & FOV2.7 to 13.5 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°
- Aperture 2.7 to 13.5 mm: F1.4
Illuminator
- Supplement Light Type IR
- IR Range 2.7 to 13.5 mm: up to 40 m
- IR Wavelength 850 nm
- Smart Supplement Light Yes
Video
- Max. Resolution 3840 × 2160
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 16 Mbps
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Audio
- Audio Type Mono sound
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- SNR ≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Target Cropping Yes
- Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset Yes
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection
Deep Learning Function
- Face Capture Yes
- Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
- Linkage Method Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Software Reset Yes
- Storage Conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
- Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
- Power Consumption and Current
12 VDC, 0.9 A, max. 10.8 W
PoE (802.3af, 36 V to 57 V), 0.36 A to 0.23 A, max. 12.9 W
- Power Interface Two-core terminal block
- Camera Material Metal
- Camera Dimension Ø153.5 mm × 133.1 mm
- Package Dimension 244 mm × 174 mm × 173 mm
- Camera Weight Approx. 810 g
- With Package Weight Approx. 1719 g
Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
