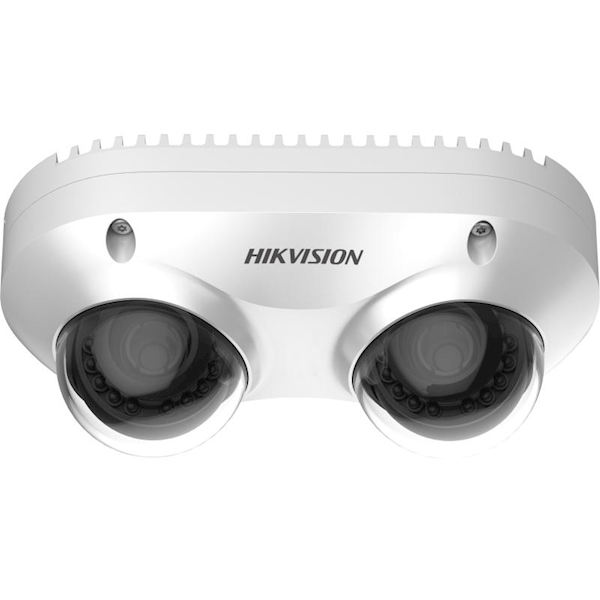

DS-2CD6D82G0-IHS(2.8MM), Dual camera 8MP PanoVu

2.8mm @ F2.0, horizontal FOV 103°, vertical FOV 53°, diagonal FOV 124°

4 mm @ F2.0, horizontal FOV 79°, vertical FOV 41°, diagonal FOV 94°

6 mm @ F2.0, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 58°

2.8 mm: D: 105.4 m, O: 41.8 m, R: 21.1 m, I: 10.5 m

4 mm: D: 123.5 m, O: 49.0 m, R: 24.7 m, I: 12.3 m

6 mm: D: 181.5 m, O: 72.0 m, R: 36.3 m, I: 18.1 m

50 Hz: 12.5 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 15 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 12.5 fps (640 × 480, 704 × 576)

60 Hz: 15 fps (640 × 480, 704 × 480)

Up to 32 users

3 user levels: administrator, operator, and user

Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local service: Chrome 41.0+, Firefox 30.0+

Rotate, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser

*Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.

Without -S: 2 built-in mics

-S: 2 built-in mics, 1 line in, 1 line out

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Scene change detection, audio exception detection

12 VDC, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 11 W

FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
