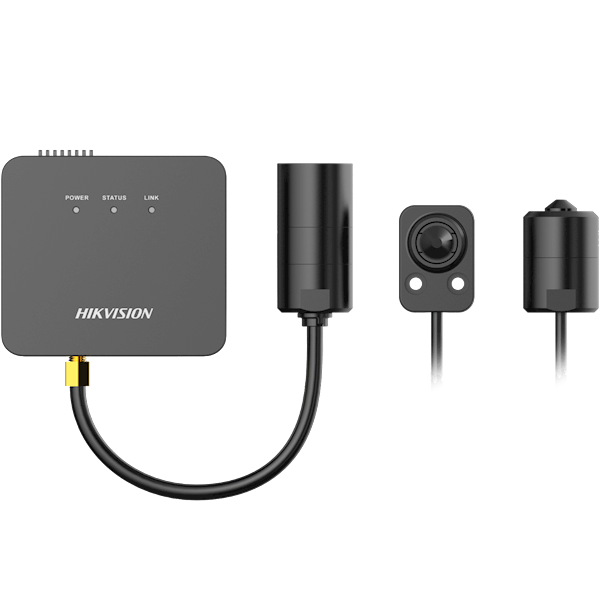

DS-2CD6425G1-20 3.7MM/8M, Pinhole 2MP L-Shaped lens 3.7mm 8 meter kabel

DS-2CD6425G1-20 3.7MM/8M, Pinhole 2MP L-Shaped lens 3.7mm 8 meter kabel

Prijs per stuk
Inloggen
  • -
    +
  • Belangrijke kenmerken
    • High quality imaging with 2 MP resolution
    • Efficient H.265+ compression technology to save bandwidth and storage
    • Clear imaging against strong back light due to 120 dB true WDR technology
    • Audio and alarm interface available
    • 3D DNR technology delivers clean and sharp images
    Pinhole 2MP L-Shaped lens 3.7mm 8 meter kabel
    Camera
    • Image Sensor1/2.8" Progressive Scan CMOS
    • Max. Resolution1920 × 1080
    • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON)
    • Shutter Time1/3 s to 1/100,000 s
    Lens
    Focal Length & FOV
    L10/L20 model:
    • 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°
    • 3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°
    L30 model:
    • 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°
    • 4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
    Lens Mount

    L10/L20: Mini

    L30: M12

    • Iris TypeFixed
    Aperture
    L10/L20:

    • 2.8 mm: F2.5
    • 3.7 mm: F2.5

    L30:

    • 2.8 mm: F2.0
    • 4 mm: F2
    DORI

    L10/L20:

    • 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m
    • 3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

    L30:

    • 2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m
    • 4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
    Video
    • Main Stream

      50 Hz: 25 fps (1920 × 1080, 1280 × 720)
      60 Hz: 30 fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
      60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

    • Third Stream

      50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
      60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

    • Video Compression

      Main stream: H.265/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCVR/BVR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region Of Interest (ROI)Support 1 fixed region for main stream
    Audio
    • Audio TypeMono
    • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
    • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz
    • Environment Noise FilteringYes
    Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • Simultaneous Live ViewUp to 15 channels
    • APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
    • User/Host

      Up to 32 users

      3 level: administrator, operator, and user

    • Network StorageNAS (NFS, SMB/CIFS)
    • ClientiVMS-4200, Hik-Connect
    Web Browser
    • Plug-in required live view: IE10, IE11
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+
    • Image Parameters SwitchYes
    • Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Wide Dynamic Range (WDR)120 dB
    • Image EnhancementBLC, HLC, defog, 3D DNR
    • Privacy MaskYes
    Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
    • Audio1 input (line in), 1 output (line out)
    • Alarm1 input, 1 output (max. 12 VDC, 30 mA)
    • RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Reset KeyYes
    Event
    • Basic EventMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
    • Smart Event

      Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

      Audio exception detection, defocus detection, scene change detection

    • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
    General
    • Power

      12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block
      PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W

    • Dimension

      Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7\" × 1.0\")

      L10: Ø26 mm × 40 mm (Ø1.0 × 1.6\")

      L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0\" × 1.0\")

      L30: Ø26 mm × 50 mm (Ø1.0 × 2.0\")"

    • Package Dimension

      Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5\" × 5.1\")
      Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5\" × 3.9\")"

    • Main body: approx. 90 g (0.2 lb.)

      Camera: approx. 90 g (0.2 lb.)

    • With Package Weight

      Main body: approx. 456 g (1.0 lb.)
      Package (with 8 m cable): approx. 991 g (2.2 lb.)
      Package (with 2 m cable): approx. 776 g (1.7 lb.)
      Camera (with 8 m cable): approx. 676 g (1.5 lb.)
      Camear (with 2 m cable): approx. 451 g (1.0 lb.)

    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
    • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
    • Length Of Lens Cable2 m (6.6 ft.) and 8 m (26.2 ft.) optional
    Approval
    • EMC
    • FCC (47 CFR Part 15, Subpart B);
    • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
    • RCM (AS/NZS CISPR 32: 2015);
    • IC (ICES-003: Issue 7);
    • KC (KN 32: 2015, KN 35: 2015)
    Safety
    • UL (UL 62368-1);
    • CB (IEC 62368-1:2014+A11);
    • CE-LVD (EN 62368-1:2014/A11:2017);
    • BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
    • LOA (IEC/EN 60950-1)

    Environment
    • CE-RoHS (2011/65/EU);
    • WEEE (2012/19/EU);
    • Reach (Regulation (EC) No 1907/2006)
