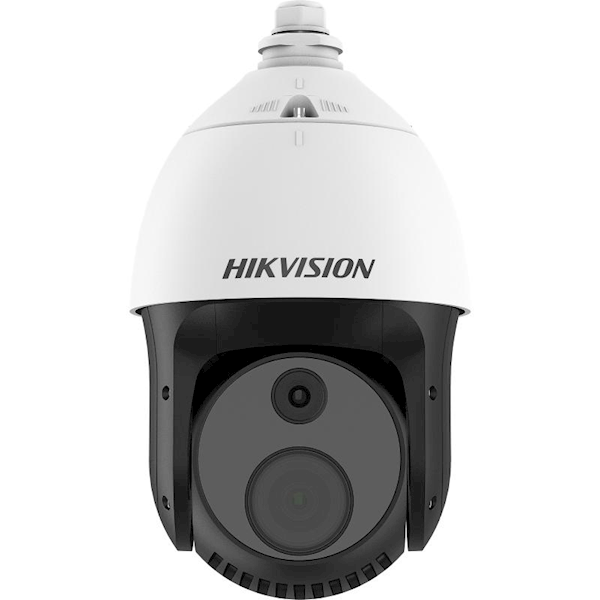

DS-2TD4228-7/S2 , Thermische bispectrum PTZ 7mm

Prijs per stuk

Inloggen

Aantal

-

+

Belangrijke Kenmerken

Perimeterbeveiligingsfunctie: lijnoverschrijding, inbraak, in- en uitgang van de regio
Temperatuuruitzonderingsalarm voor brandpreventie, -20°C tot 150°C (-4°F tot 302°F), ± 8°C (± 14,4°F)
Algoritme voor branddetectie
256 × 192 (de resolutie van het uitvoerbeeld is 1280 × 720) resolutie 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1,0)
Beeldverwerkingstechnologie: Liner, histogram en zelfaanpassende thermische AGC-modus, DDE, 3D DNR
Slimme tracking: panoramatracking, gebeurtenistracking en patrouilletracking met meerdere scènes
Slimme trackingkoppeling: thermisch zicht en optisch zicht
Rookdetectie voor brandpreventie

Hikvision, Thermische bispectrum PTZ 7mm

Thermal Module

Optical Module

Image Effect

Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationSupported in white hot and black hot mode.

PTZ

Movement RangePan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
Proportional ZoomYes
Presets300 in total, 273 are configurable.
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator

Smart Function

VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video And Audio

Main Stream
Optical channel

50 Hz:25 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)

60 Hz:30 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)

Thermal channel

25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
Sub-Stream
Optical channel

50 Hz:25 fps (704 × 576, 352 × 288)

60 Hz:30 fps (704 × 576, 352 × 288)

Thermal channel

25 fps (704 × 576, 640 ×512, 256 × 192)
Video Compression
Main stream: H.265+/H.265/H.264+/ H.264

Sub-stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11

Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input7-ch inputs (0-3.3 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω

General

Web Client Language
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
24VAC ± 20%, two-core terminal block

36VDC ± 20%, two-core terminal block

48VDC ± 20%, two-core terminal block

Hi-PoE
Power Consumption
Max 30 W
Working Temperature/Humidity-30°C to 60°C (-22°F to 140°F), 90% or less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")
WeightApprox. 3.9Kg (8.6lb)

Detection Range Table/Smart Function Range
