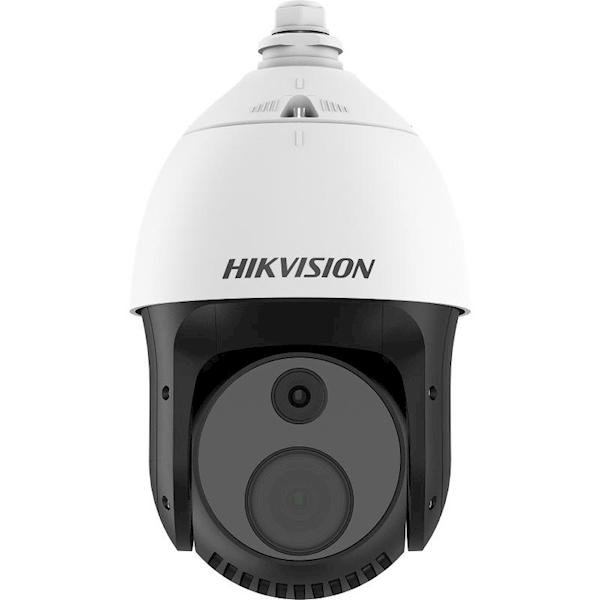

DS-2TD4238-10/S2 , thermische bispectrum PTZ 10mm

DS-2TD4238-10/S2 , thermische bispectrum PTZ 10mm

Prijs per stuk
Inloggen
  • -
    +
  • Belangrijke Kenmerken

    • Perimeterbeveiligingsfunctie: lijnoverschrijding, inbraak, in- en uitgang van de regio
    • Temperatuuruitzonderingsalarm voor brandpreventie, -20°C tot 150°C (-4°F tot 302°F), ± 8°C (± 14,4°F)
    • Algoritme voor branddetectie
    • 384 × 288 (de resolutie van het uitvoerbeeld is 1280 × 720) resolutie 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1,0)
    • Beeldverwerkingstechnologie: Liner, histogram en zelfaanpassende thermische AGC-modus, DDE, 3D DNR
    • Hoogwaardige detector met 10 jaar garantie
    • Slimme tracking: panoramatracking, gebeurtenistracking en patrouilletracking met meerdere scènes
    • Slimme trackingkoppeling: thermisch zicht en optisch zicht
    • Rookdetectie voor brandpreventie
    Hikvision, thermische bispectrum PTZ 10mm

    Thermal Module
    • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    • Resolution384 × 288 (the resolution of output image is 1280 × 720)
    • Pixel Interval12 μm
    • Response Waveband8 μm to 14 μm
    • NETDLess than 35 mK (@25 °C,F#=1.0)
    • Focal Length10 mm
    • Focus ModeAthermalized
    • IFOV1.2 mrad
    • ApertureF1.0
    • Field Of View26.46°×19.81° (H × V)
    • Min. Focusing Distance1.5m
    • Digital Zoom×2, ×4, ×8
    Optical Module
    • Image Sensor1/2.8" Progressive Scan CMOS
    • Resolution2688 × 1520, 4 MP
    • Min. IlluminationColor: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2,AGC ON)
    • Field Of View58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
    • Focal Length4.8-153 mm, 32x
    • Aperture (Range)F1.2-F4.4
    • Focus ModeAuto/Semi-auto/Manual
    • Shutter Speed1s to 1/100,000s
    • WDR120 dB
    • Optical DefogNo, support algorithmic defog
    Image Effect
    • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
    • Target ColorationSupported in white hot and black hot mode.
    PTZ
    • Movement RangePan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
    • Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
    • Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
    • Proportional ZoomYes
    • Presets300 in total, 273 are configurable.
    • Patrol Scan8; Up to 32 Presets Per Patrol
    • Pattern Scan4; More Than 10 Minutes Per Pattern
    • Power Off MemoryYes
    • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
    • PT StatusTurn On/Turn Off
    • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
    Illuminator
    • IR DistanceUp to 100m
    • IR Intensity And AngleAutomatically adjusted
    Smart Function
    • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
    • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
    • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
    • Temperature Accuracy± 8 °C (±14.4 °F)
    • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
    Video And Audio
    • Main Stream

      Optical channel

      50 Hz:25 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)

      60 Hz:30 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)

      Thermal channel

      25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)

    • Sub-Stream

      Optical channel

      50 Hz:25 fps (704 × 576, 352 × 288)

      60 Hz:30 fps (704 × 576, 352 × 288)

      Thermal channel

      25 fps (704 × 576, 640 ×512, 256 × 192)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/ H.264

      Sub-stream: H.265/H.264/MJPEG

    • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
    Network
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
    • Simultaneous Live ViewUp to 20 channels
    • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
    • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Live view (plug-in allowed) : Internet Explorer 11

      Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

      Local service : Chrome 57.0+, Firefox 52.0 +

    Interface
    • Alarm Input7-ch inputs (0-3.3 VDC)
    • Alarm Output2-ch relay outputs, alarm response actions configurable
    • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
    • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
    • Audio OutputLinear Level; Impedance: 600 Ω
    • Communication Interface

      1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

      1, RS-485 interface

    • Analog Video Output1.0 V [p-p]/75 Ω
    General
    • Web Client Language

      32 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

    • Power Supply

      24VAC ± 20%, two-core terminal block

      36VDC ± 20%, two-core terminal block

      48VDC ± 20%, two-core terminal block

      Hi-PoE

    • Power Consumption

      Max 30 W



    • Working Temperature/Humidity-30°C to 60°C (-22°F to 140°F), 90% or less
    • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
    • Dimension305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")
    • WeightApprox. 3.9Kg (8.6lb)
    Detection Range Table/Smart Function Range
    • VCA Range For Humans100 m
    • VCA Range For Vehicles300 m
