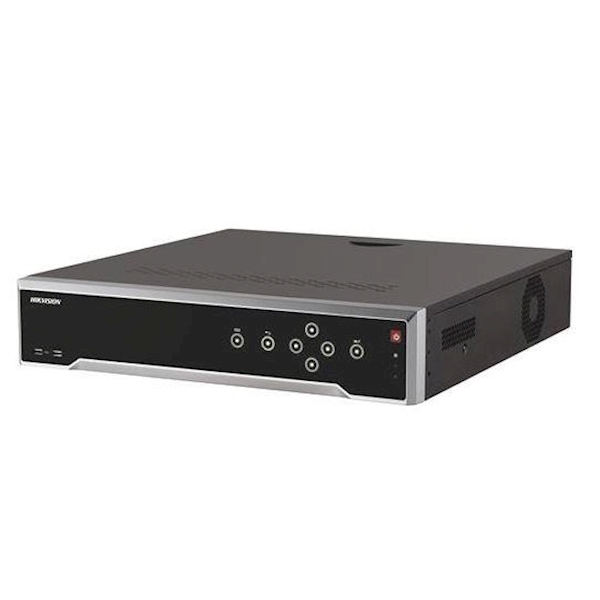

16-ch 1.5U K Series AcuSense 4K NVR
| Video/Audio Input |
| IP video input: |
| |
16-ch |
| Two-way audio input: |
| |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network |
| Incoming bandwidth: |
| |
160Mbps |
| Outgoing bandwidth: |
| |
160Mbps |
| Remote connection: |
| |
128 |
| Video/Audio Output |
| HDMI Output: |
| |
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: |
| |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: |
| |
1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: |
| |
16-ch |
| VGA Output: |
| |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding |
| Live view / Playback: |
| |
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: |
| |
8-ch@1080P |
| Hard Disk |
| SATA: |
| |
2 SATA interfaces for 2 HDDs |
| Capacity: |
| |
Up to 6TB capacity for each HDD |
| External Interface |
| Network Interface: |
| |
2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface: |
| |
RS-232; RS-485; |
| USB Interface: |
| |
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0 |
| Alarm In: |
| |
16-ch |
| Alarm Out: |
| |
4-ch |
| General |
| Power Supply: |
| |
100 to 240 VAC |
| Consumption(without hard disk and POE): |
| |
≤20 W |
| Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: |
| |
10 % ~ 90 % |
| Chassis: |
| |
19-inch rack-mounted 1.5U chassis |
| Dimensions: |
| |
445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
| Weight(without HDD): |
| |
≤ 5 Kg (11 lb) |
