Video Input Channel

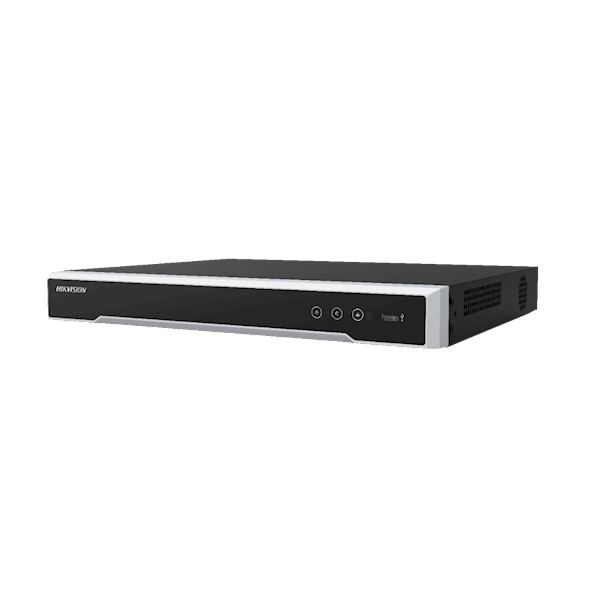

4-channel NVR (w/o POE)
Video Resolution 8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Outgoing Bandwidth 80 Mbps
Incoming Bandwidth 40 Mbps
Video Parameter
Video Output: 1-ch HDMI, 1-ch VGA
Video Output Mode: HDMI/VGA same output
HDMI Output: 1920*1080/60Hz,1600*1200/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz
VGA Output: 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz
Video Decoding Format: H.265;H.265+;H.264;H.264+;MPEG4
Aux Port Window Division: 1/4
Decoding Capability: 4x 1080P
Live View Window Division: 1/4
Synchronous Playback: 4
Audio
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Decoding Format G.711ulaw;G.711alaw;G.722;G.726;AAC;MP2L2
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
HDD Management
1 SATA interface
Max. Capacity Per HDD: Up to 6 TB
Recording Management: Playback Mode, Normal/Smart, Event, Tag, Eternal File
Network Management
Remote Connections 16x
Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF, PANASONIC, PELCO, RTSP, SAMSUNG, SANYO, SONY, VIVOTEK, ZAVIO
Network Protocol: IPv6, HTTP, HTTPS, UPnP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
External Port: Network Interface
1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Front panel: 1× USB 2.0; Rear panel: 1× USB 2.0
Alarm Input: 4x
Alarm Output: 1x
4x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Wireless Transmission
UIM Card Slot 1x, on rear panel
1x SMA interface, antenna module cable length: 3 m
Wireless Standard: GSM/EDGE:B3/B8, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41
General
Power 48 VDC, 1.3 A
Consumption (Without HDD) ≤10W
Working Temperature -10°~+55°
Working Humidity 10%~90%
Chassis Mini 1U
Dimension 315 × 240 × 48 mm (12.4 × 9.4 × 1.9 inch)
Weight (Without HDD) ≤1.18Kg
