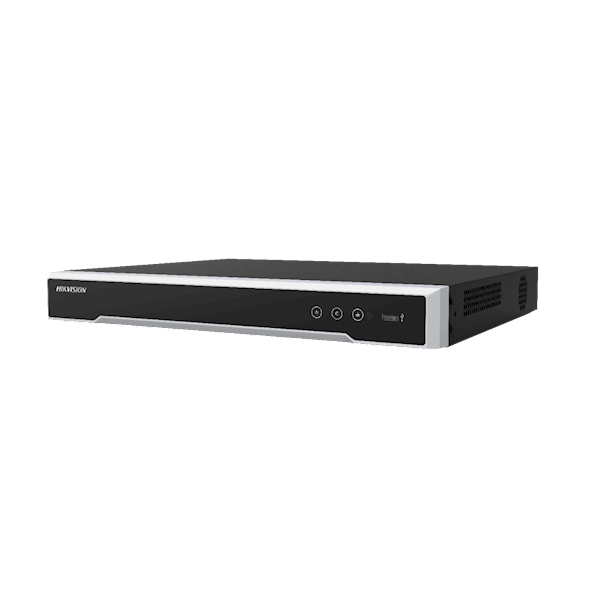

DS-7608NI-K2/4G, 8 Kanaals, 2 x Bay HDD, 4G, "K-Serie"

Prijs per stuk

Inloggen

Opties

Inbouwservice

Opties
	Inbouwservice van 1 harde schijf

Switches

Opties
	5 Kanaals, 4x PoE
	6 Kanaals, 1 x High PoE, 3x PoE
	18 Kanaals, 16 x PoE

Western Digital HDD

Opties
	WD Purple 1TB
	WD Purple 2TB
	WD Purple 3TB
	WD Purple 4TB
	WD Purple 6TB
	WD Purple 8TB

Seagate HDD

Opties
	3 jaar advanced garantie + data recovery
	Seagate Skyhawk 1TB
	Seagate Skyhawk 2TB
	Seagate Skyhawk 3TB
	Seagate Skyhawk 4TB
	Seagate Skyhawk 6TB

Aantal

- Tot 8-kanaals IP-camera-ingang
- Tot 80 Mbps inkomende bandbreedte en 80 Mbps uitgaande bandbreedte
- H.265 + / H.265 / H.264 + / H.264 videocompressie
- HDMI- en VGA-onafhankelijke uitgang voor 8-kanaals apparaat
- 4G draadloos netwerk, SIM / UIM-kaartsleuf op achterpaneel, ondersteuning om de SIM / UIM-status, netwerkoperator, signaalsterkte, netwerkregistratiestatus, kiesstatus, real-time modus, etc. te bekijken.
- Opslag en afspelen: 2 SATA-interfaces (tot 6 TB capaciteit per HDD)
- Slimme functie: ondersteuning voor meerdere VCA-gebeurtenissen (Video Content Analytics)
- Netwerk- en Ethernet-toegang: 1 zelfaanpassende 10/100/1000 Mbps netwerkinterface

Kenmerken
Technische specificaties
Documentatie

8-ch 1U 4G NVR

System Parameter

Video input channel 8
Video resolution 8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Outgoing bandwidth 80 Mbps
Incoming bandwidth 80 Mbps

Video parameter

Video output1-ch HDMI, 1-ch VGA
Video output modeHDMI/VGA independent output
HDMI output
4K(3840*2160)/30Hz,
1920*1080/60Hz,1600*1200/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz
VGA output 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz
Video decoding format H.265;H.265+;H.264;H.264+;MPEG4
Aux port window division 1/4/6/8/9
Decoding capability 4*1080P
Live view window division 1/4/6/8/9
Synchronous playback 8

Audio parameter

Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio decoding format G.711ulaw;G.711alaw;G.722;G.726;AAC;MP2L2
Audio output 1-ch, RCA (Linear, 1 KΩ)

HDD management

HDD No. 2 SATA interfaces
Max. capacity per HDD Up to 6 TB capacity for each disk

Recording management

Playback mode Normal/Smart, Event, Tag, Eternal File

Network management

Remote connections 64
Protocol HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF, PANASONIC, PELCO, RTSP, SAMSUNG, SANYO, SONY, VIVOTEK, ZAVIO
Network protocol IPv6, HTTP, HTTPS, UPnP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

External port

Network interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm input 4
Alarm output 1

Wireless transmission

UIM card slot1, on rear panel
SMA interface1 SMA interface, antenna module cable length: 3 m
Wireless standard
GSM/EDGE:B3/B8
WCDMA:B1/B5/B8
LTE-FDD:B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41

General standard

Power 12 VDC, 3 A
Consumption (without HDD) ≤15W
Working temperature -10?~+55?
Working humidity 10%~90%
Chassis 1U
Dimension 380 × 315 × 52 mm (15.0 × 12.4 × 2.0 inch)
Weight (without HDD) ≤1Kg

Datasheet-of_DS-7600NI-K2_4G-NVR_3.4.104_20200929.pdf
