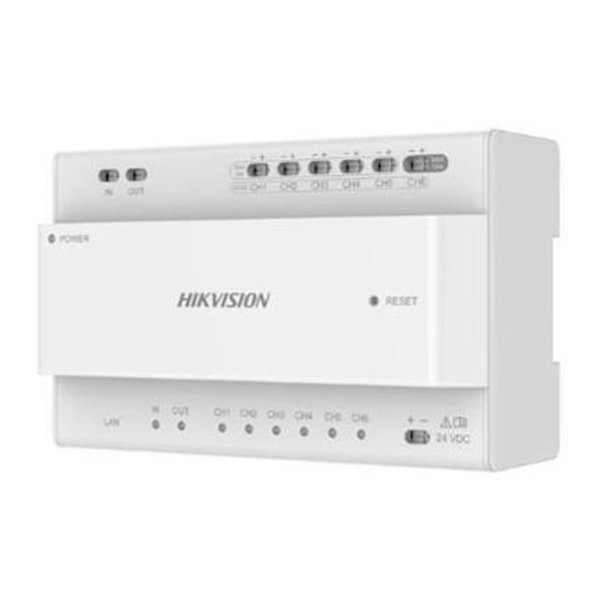

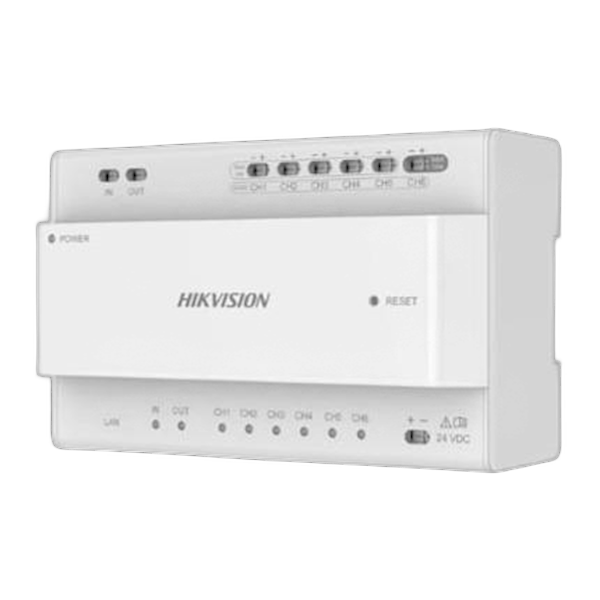

Hikvision, Daisychain, Distributor
Device Interfaces
- Two-Wire Interface8("IN""OUT" for casacading, CH1-CH6 for Door station and Indoor station)
- Power Indicator 1
- Signal Indicator 8
- Reset 1
- Power Supply Input 48VDC
General
- Power Supply 48 VDC
- Installation DIN rail installation
- Power Consumption CH1 to CH2<15 W;CH3+CH4+CH5+CH6<110 W
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
