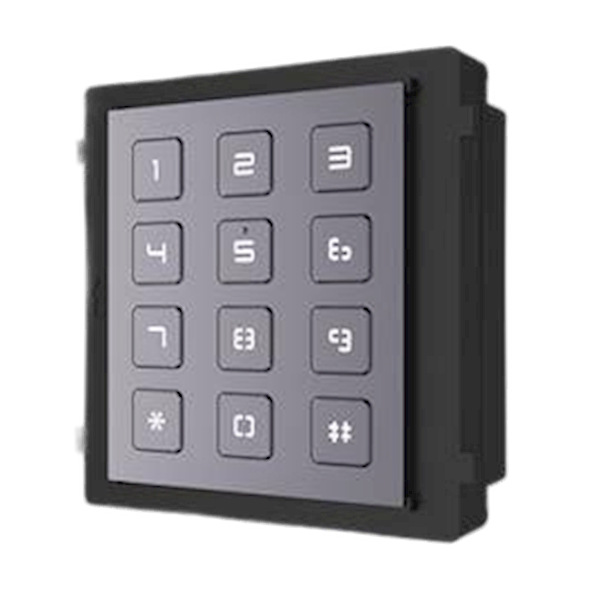

modulaire intercom, keypad
| System Parameters |
| Operation method: |
|
Physical Button |
| Processor: |
|
Embedded MCU Processor |
| Device Interfaces |
| Debug: |
|
1 |
| Module-connecting: |
|
2(1 Input, 1 Output) |
| General |
| Power output: |
|
12VDC(Powered for the other module) |
| Power input: |
|
12VDC(Powered by the other module) |
| DIP switch: |
|
8 |
| Protection level: |
|
IP65, IK7 |
| Installation: |
|
Flush Mounting, Surface Mounting |
| Power Consumption: |
|
≤2W |
| Physical button: |
|
12 |
| Working Humidity: |
|
10% to 95% |
| Working Temperature: |
|
-40° C to +60° C (-40° F to 140° F) |
| Dimensions(L × W × H): |
|
98.5mm×100mm×33.7mm(3.87"×3.95"×1.33") |
