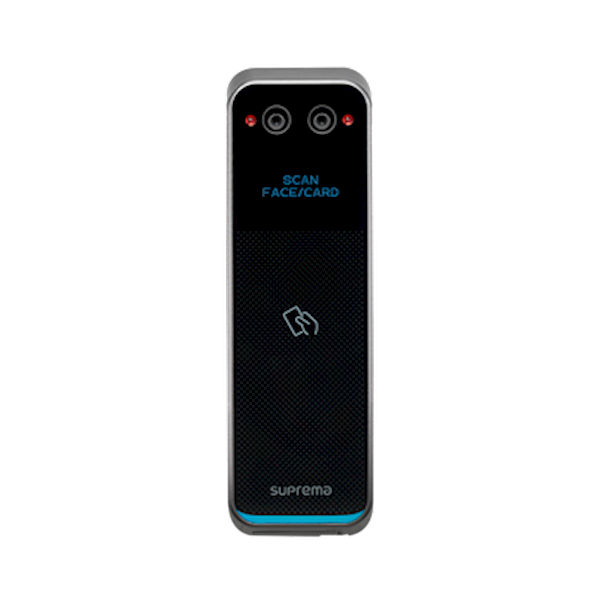

Suprema, Bio Entry W3 (BEW3-DB) PoE
Type Model
BEW3-DB BEW3-APB
Capaciteit
Max. aantal inloggegevens
(1:N)
Face: 30.000
Pas: 100.000
Max. aantal inloggegevens
(1:1)
Face: 30.000
Pas: 100.000
Max. aantal tekstlogs: 1.000.000
Max. Beeldlogs 10.000
RF-optie
125 kHz EM & 13,56 MHz
MIFARE, MIFARE Plus,
DESFire, DESFire EV1/
EV2/EV31), FeliCa
125 kHz EM, HID Prox &
13,56 MHz MIFARE, MIFARE
Plus, DESFire, DESFire
EV1/EV2/EV31), Felica,
iCLASS SE/SR/Seos
RF-leesbereik2)
MIFARE/DESFire/EM: 50 mm,
FeliCa: 30 mm
MIFARE/DESFire/EM/
iCLASS: 50 mm,
FeliCa/HID Prox: 30 mm
Mobiele NFC (Android), BLE (Android, iOS)
Hardware
CPU
1,5 GHz Quad (2.0Tops)
Geheugen
16 GB Flash + 2 GB RAM
LCD
1,3" PMOLED
Camera
2MP 2ST
IP-classificatie
IP67
IK-classificatie
IK08
Gewicht 283gr
Afmetingen (BxHxD)
50mm x 160mm x 34,15mm
Voeding
DC 12V 1,0A, DC 24V 0,6A
Certificaten
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC
Interface
Ethernet ondersteund (10/100 Mbps, auto MDI/MDI-X), PoE
