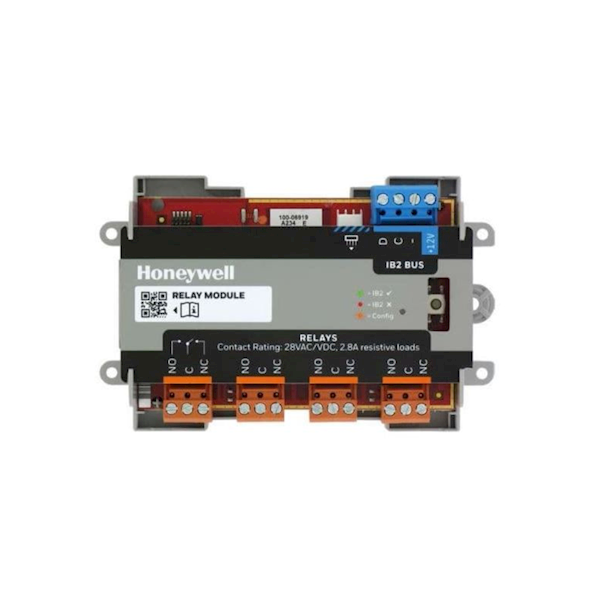

MAXPRO Intrusion relay Module, 4 relays
POWER
- Input voltage 13.8 VDC nominal (10–14.5 VDC)
- Current, idle 15 mA
- Current, max. 185 mA (relays active)
- Relays (x 4) Contact rating 28 VDC; max. 2.8 A (resistive load) max per relay
ENVIRONMENTAL
- Operating temperature -10 to +50 °C / Indoor use only
- Humidity Max. 93% RH non-condensing
- Ingress and impact protection EN 60529:1992+A2:2013: IP42 / EN 62262:2002: IK06
PHYSICAL
- Dimensions (W x H x D) With enclosure: 14.6 cm x 14.6 cm x 3.4 cm
- As shipped: 17.5 cm x 15.5 cm x 4.0 cm
- Weight With enclosure: 256 g
- As shipped: 332 g
OTHER
- Ancillary Control Equipment
- (ACE) Type B
