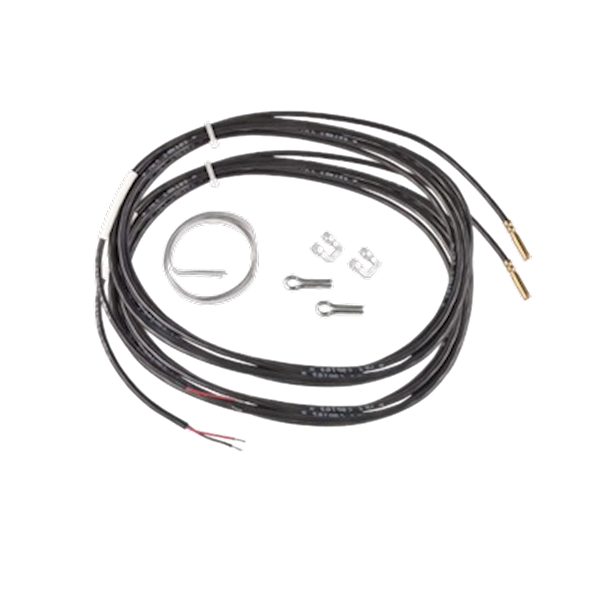

Tempratuursensor t.b.v. TM-201A
| Manufactured for JABLOTRON by |
SENSIT s.r.o, Czech Republic |
| Sensor type |
NTC 10 k?, B25/100 = 3455 K |
| Sensor tolerance |
± 1% at 25 °C
± 2°C in the range of -25 °C to 105 °C |
| Temperature sensor connection |
2 conductors |
| Detection range |
-25 °C to 105 °C |
| Maximum input power |
15 mW |
| Water resistance |
IP67 according to EN 60 529 |
| Housing material |
brass |
| Housing diameter |
4.6 ± 0,1 mm |
| Housing length |
24 mm |
| Insulation resistance |
> 200 MW at 500 V DC, 25 ° C ± 3 °C |
| Supply cable - type |
unshielded PVC, 2 x 0.35 mm2 |
| Supply cable - length |
3 m |
