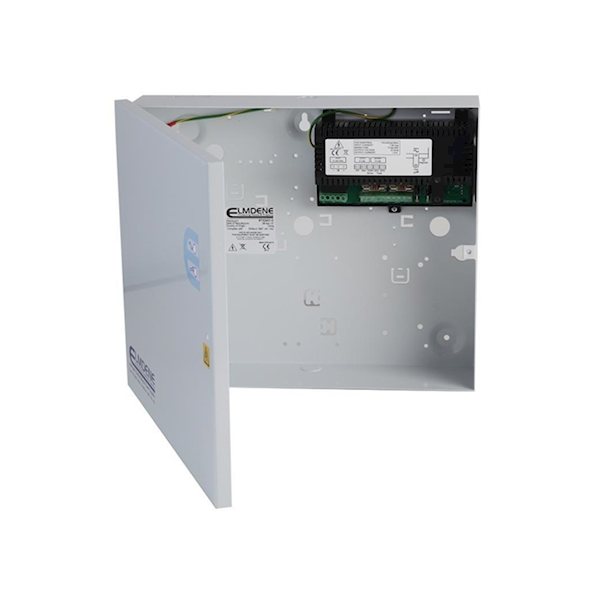

EKHO PSU for Output Module
Electrical
Power supply value 110 to 240 VAC, 50 Hz to 60 Hz
Current consumption <1 A maximum at full load
Output
Voltage 24 VDC
Output Current 1 A
Voltage 27 to 28.3 VDC with mains
20.3 to 26.0 VDC on battery standby
Ripple 100 mV max.
Continuous current
output
- With 2.1 Ah batteries 1.5 A non-charging / 1.2 A charging
- With 7 Ah batteries 1.5 A non-charging / 1.2 A charging
Fuse - load 1.6 A
Fuse - battery 1.6 A
Constant current charge 0.3 A
Standby battery
Capacity Up to 2 x 7 Ah (in housing)
Charging Constant current charge to 80% in 24 h, Float
charging to 100% in 48 h
Deep discharge
protection
Battery disconnect at 21 V
Low battery warning
threshold
23 V
Physical
Physical dimensions 275 x 330 x 80 mm
Net weight 3.3 kg (without batteries)
Colour White
Material Steel
Environmental
Operating temperature -10 to +40°C
Storage temperature -20 to +80°C
Relative humidity 75% noncondensing
Local indicators
On the front of the unit Green LED - power
Yellow LED - fault
Inside the unit Orange LED - fault diagnostics
Signalling output
Fault relay 100 mA @ 60 VDC N/C contacts
Mains fault relay 100 mA @ 60 VDC N/C contacts
